Arduino Pro Mini

Product Parameters

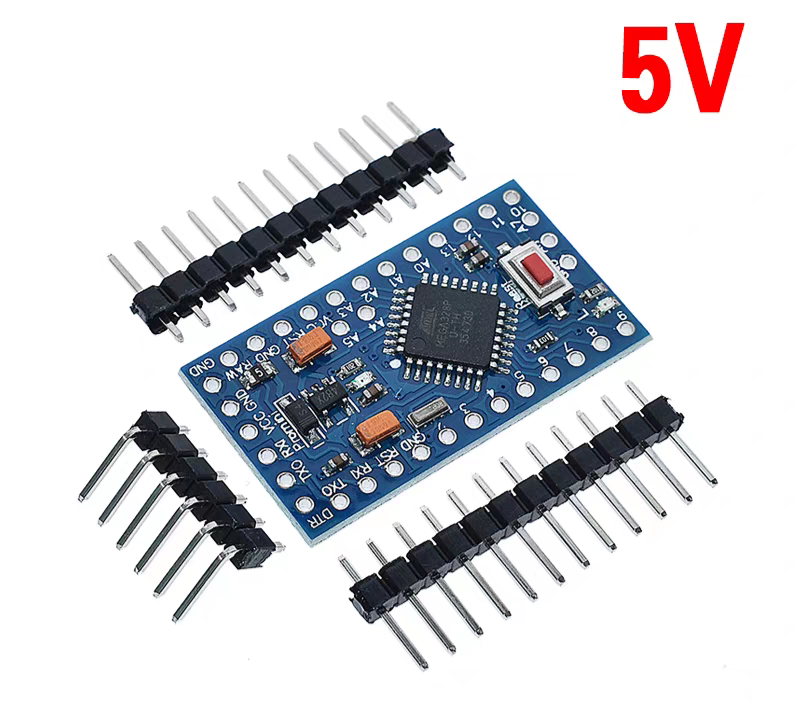

The professional Mini Pro is a microcontroller circuit board. It has 14 digital input/output pins (6 of which can be used as PWM outputs), 8 analog inputs, a 16 MHz crystal oscillator, and a reset button. Pin headers are provided for installation.

1. 14 digital input/output pins: RX, TX, D2 ~ D13
2. 8 analog input pins: A0 ~ A7
3. 1 TTL serial port: RX/TX
4. 6 PWM pins: D3, D5, D6, D9, D10, D11
5. Uses Atmel ATmega328P-AU microcontroller
6. Supports serial download
7. Supports direct DC power supply 5V ~ 12V
8. Supports 9V battery power supply
9. Clock speed: 16 MHz

Size: 33mm × 18mm
